ADX ALUPANEL FORMWORK SYSTEM

ADX Alu Panels – The Ultimate Adjustable Lightweight & Durable Vertical Formwork System. The ADX Alu Panels Formwork System is the ideal choice for modern vertical formwork, offering efficiency, reliability, and cost savings for construction projects.

Applications:

The ADX Alu Panels Formwork System is designed to efficiently support various vertical structures, including:

• ✔ Columns
• ✔ Retaining Walls
• ✔ Core Walls

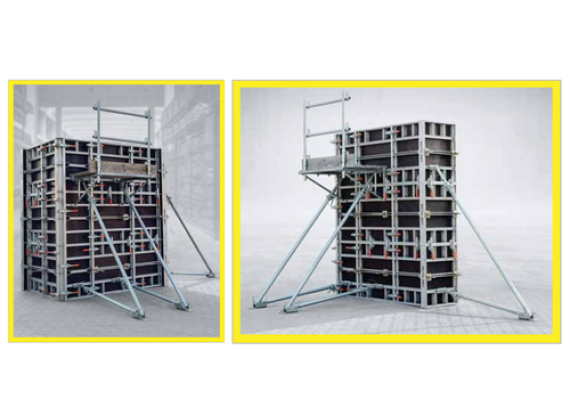

System Configuration

Pre-Assembled Aluminium Panels: Delivered ready for immediate use, ensuring quick and hassle-free installation with ADX Panel to Panel Clamps. Tie Rod & Wing Plate & Nut: Strategically integrated into the ADX Alu Panels for enhanced stability and structural integrity. Raker/PushPull Props: Essential for maintaining precise vertical alignment throughout construction.

Key Benefits:

• Lightweight & Highly Durable: Made from premium-grade aluminium with Birch Film-Faced Plywood and a powder-coated finish for extended durability.
• Designed to withstand concrete pressure up to 60 kN/m²
• Maximized Labour Efficiency: Streamlined assembly with just a few key components—ADX Alu Panel, Clamp, Tie Rod, Wing Plate, and Raker Prop—ensuring fast and cost-effective installation.
• Effortless Handling Without a Crane: Lightweight at just 27.00 kg/m², making it easy to transport and assemble manually.
• Versatile Panel Adaptability: Universal panel design allows adjustment to various column sizes, minimizing material waste and reducing costs.
• Built-In Working Platform: Designed with brackets for a secure and stable second-lift application.
