WALL PANELS

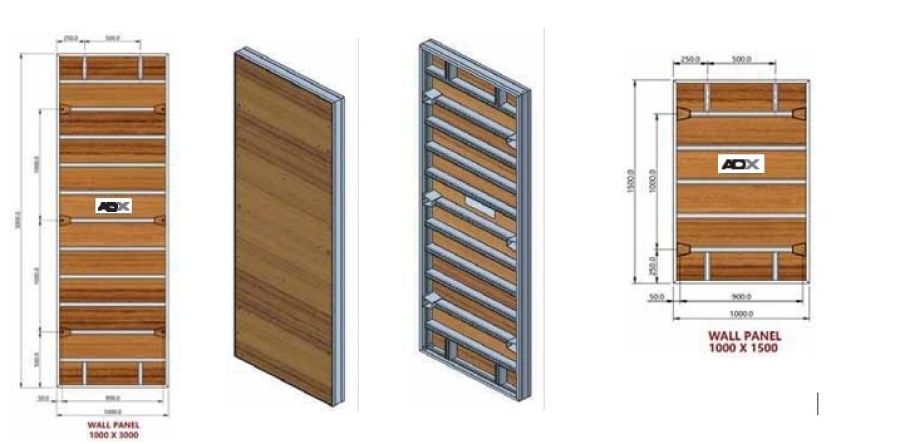

Wall Panels

Wall panels are the fastest way securing structure for concrete wall.


Material

Aluminium Alloy 6061-T6 / Equivalent


Finish

Mill Finish


Item Code Description Width & Height (MM) Weight (Kg)
ADXW100300 Aluminium Wall Panel with Plywood 1000 x 3000 74.10
ADXW075300 Aluminium Wall Panel with Plywood 750 x 3000 56.20
ADXW060300 Aluminium Wall Panel with Plywood 600 x 3000 48.40
ADXW050300 Aluminium Wall Panel with Plywood 500 x 3000 43.30
ADXW045300 Aluminium Wall Panel with Plywood 450 x 3000 40.60
ADXW030300 Aluminium Wall Panel with Plywood 300 x 3000 32.50

Item Code Description Width & Height (MM) Weight (Kg)
ADXW100150 Aluminium Wall Panel with Plywood 1000 x 1500 40.90
ADXW075150 Aluminium Wall Panel with Plywood 750 x 1500 30.80
ADXW060150 Aluminium Wall Panel with Plywood 600 x 1500 26.50
ADXW050150 Aluminium Wall Panel with Plywood 500 x 1500 23.50
ADXW045150 Aluminium Wall Panel with Plywood 450 x 1500 22.20
ADXW030150 Aluminium Wall Panel with Plywood 300 x 1500 17.40
ADXW015150 Aluminium Wall Panel with Plywood 150 x 1500 13.70

Item Code Description Width & Height (MM) Weight (Kg)
ADXW100100 ADX Aluminium Wall Panel with Plywood 1000 x 1000 30.60
ADXW075100 ADX Aluminium Wall Panel with Plywood 750 x 1000 22.90
ADXW060100 ADX Aluminium Wall Panel with Plywood 600 x 1000 19.30
ADXW050100 ADX Aluminium Wall Panel with Plywood 500 x 1000 17.30
ADXW045100 ADX Aluminium Wall Panel with Plywood 450 x 1000 16.40
ADXW030100 ADX Aluminium Wall Panel with Plywood 300 x 1000 12.70
ADXW015100 ADX Aluminium Wall Panel with Plywood 150 x 1000 10.00

Item Code Description Width & Height (MM) Weight (Kg)
ADXW100075 ADX Aluminium Wall Panel with Plywood 1000 x 750 25.40
ADXW075075 ADX Aluminium Wall Panel with Plywood 750 x 750 19.10
ADXW060075 ADX Aluminium Wall Panel with Plywood 600 x 750 16.10
ADXW050075 ADX Aluminium Wall Panel with Plywood 500 x 750 14.50
ADXW045075 ADX Aluminium Wall Panel with Plywood 450 x 750 13.80
ADXW030075 ADX Aluminium Wall Panel with Plywood 300 x 750 10.70
ADXW015075 ADX Aluminium Wall Panel with Plywood 150 x 750 8.00

Item Code Description Width & Height (MM) Weight (Kg)
ADXW100050 ADX Aluminium Wall Panel with Plywood 1000 x 500 18.50
ADXW075050 ADX Aluminium Wall Panel with Plywood 750 x 500 13.70
ADXW060050 ADX Aluminium Wall Panel with Plywood 600 x 500 11.40
ADXW050050 ADX Aluminium Wall Panel with Plywood 500 x 500 10.20
ADXW045050 ADX Aluminium Wall Panel with Plywood 450 x 500 9.60
ADXW030050 ADX Aluminium Wall Panel with Plywood 300 x 500 7.20
ADXW015050 ADX Aluminium Wall Panel with Plywood 150 x 500 5.70
